| Weight | 0.137 kg |
|---|---|
| Dimensions | 66 × 26 × 85 mm |
CBI QFLN-2(13) Surge Arrestor
$33.30
Sale price
$33.30
Regular price
$42.69
Skip to product information

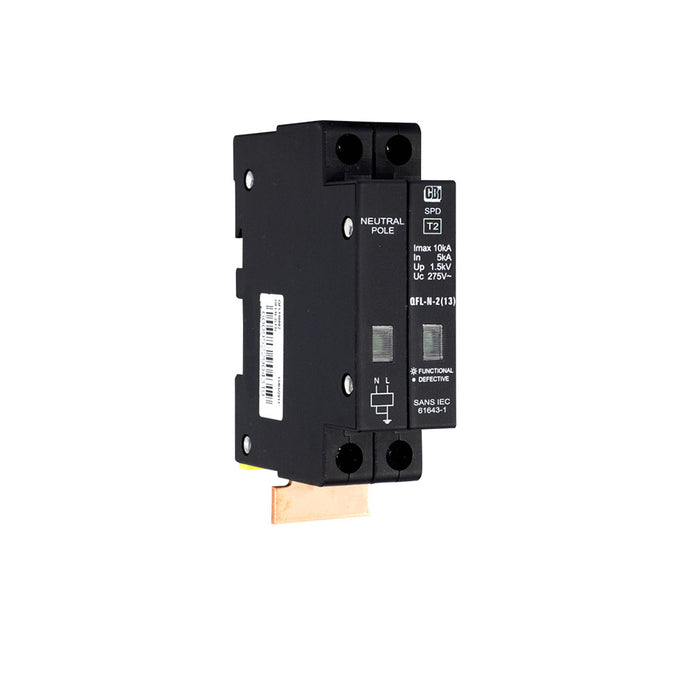

CBI QFLN-2(13) Surge Arrestor
$33.30
Sale price
$33.30
Regular price
$42.69
The QFL range of rail mounted surge protection devices are 13 mm in width per pole and Class II devices. The device is fitted with a LED indicator indicating the SPDs condition: while ON, the SPF is functional, if OFF and the mains power is still available, the SPD is no longer functional and should be replaced. The device is a voltage limiting / clamping type with MOV.
Features & Benefits
- SANS 61643-1
- Clip-in on both DIN and CBI mini rail
- DIN mount in grey with 45 mm front escutcheon
- Dual (DIN & CBI mini rail) mount in black with 57 mm front escutcheon
- LED indication of the SPD’s condition – while ON, the SPD is functional, if OFF and the mains power is still available, then the SPD is no longer functional and should be replaced
- Thermal disconnect device (prevent potential thermal runaway problems)
- One port SPD (no series impedance)
- Voltage limiting / clamping-type SPD (MOV)
- IP 20 rating
